Target Technical Repeater Specifications

224.700- W3VLG Berkeley Springs WV.
System Hub Repeater (No PL)

• This repeater is a Hamtronics REP-200
• Output power 100 Watts.
• Receiver Sensitivity <.15 uV. for 12 db SINAD.
• Duplexers Wacom BpBr 4 Can Model 652.
• Duplex Antenna @ 60', 9db omni. side mounted.
• Located at Berkeley Springs WV. @ 2700' ground elevation amsl.
• MCC RC-100 repeater controller.
• Center of antenna @ 2760' amsl.
• This repeater features Flat Audio Throughput that allows the users audio to be simplex quality and the repeater to be transparent to the link system.

146.745- KK3L Berkeley Springs WV. (PL 123.0)

• This repeater is a Motorola MICOR Basestation.
• Output power 100 Watts.
• Receiver Sensitivity <.125 uV. for 12 db SINAD.
• Duplexers Wacom BpBr 4 Can Model 641.
• Transmit Antenna @130', 5.5 dB omni side mounted.
• Receive Antenna @ 110', 6.1 dB omni side mounted.
• ACC RC-96 repeater controller, V4.2
• Site elevation 2700' amsl.
• Antenna mean center @ 2820' amsl.
• This is an extreme wide area coverage repeater.

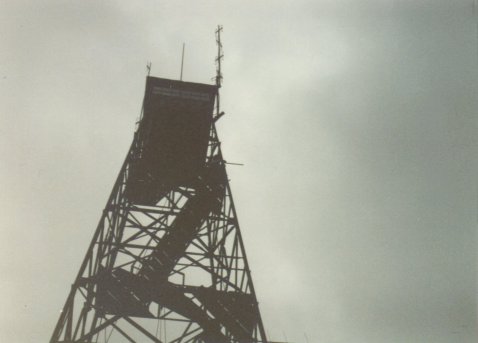

146.835- W3WGX Seven Springs PA. (PL 123.0)

• This repeater is a Motorola MICOR Basestation rebuilt by Scott Zimmerman N3XCC and Kevin Custer.
• Output power 110 Watts.
• Receiver Sensitivity <.125 uV. for 12 db SINAD.
• Duplexers Wacom BpBr 4 Can Model 641.
• Duplex Antenna @ 111', 6.1 dB omni.
• ACC RC-96 repeater controller, V5.2
• Site elevation 2984' amsl.
• Center of antenna @ 3095' amsl.
• This is an extreme wide area coverage repeater.

145.250- N3VNG Damascus MD. (PL 146.2)

• This repeater is a Motorola MICOR Basestation.
• Output power 50 Watts.
• Receiver Sensitivity <.125 uV. for 12 db SINAD.
• Duplexers Wacom BpBr 4 Can Model 641.
• Duplex antenna @ 55', 6 dB omni top mounted.
• MCC RC-1000V repeater controller.
• Site elevation ~ 2200' amsl.
• Center of antenna @ ~ 2400' amsl.
• This is a wide area coverage repeater.

145.290- W3KKC New Baltimore PA. (PL 123.0)

• This repeater is a Motorola MICOR Railroad Mobile converted to duplex.
• Output power 5 Watts.
• Receiver Sensitivity <.15 uV. for 12 db SINAD.
• Duplexers Homemade 6 Can BpBr. (as described in older ARRL Handbook)
• Duplex antenna @ 100', 3 dB omni side mounted. (AEA Isopole)
• MCC RC-1000V repeater controller.
• Site elevation 2360' amsl.
• Center of antenna @ 2460' amsl.
• This is a limited area coverage repeater.

This page last modified on July 05 2003 @ 19:01 local eastern,  Kevin Custer W3KKC
